| Brand Name : | wanbo |
| Model Number : | WBP-IL01 |
| Price : | Negotiation |
| Payment Terms : | L/C,T/T |
| Supply Ability : | 1 ~ 5000 piece 30days |
| Delivery Time : | 7-15 working day |
| Product model | WBP-IL01-485 | Rated power | 20W |
| Specification and size | 460*460*80/460*330*400mm(Down/up) | Operating temperature | -20℃ ~ +70℃ |
| Input voltage | DC 12V | Remote control range | 0~20m |
| Net weight | 7kg | Standby current | 10ma(no sleep) |
| Product accessories | Remote control *2；keys *2；expansion screws *3 | ||
Table 3.1 Technical parameters of 485 parking lock

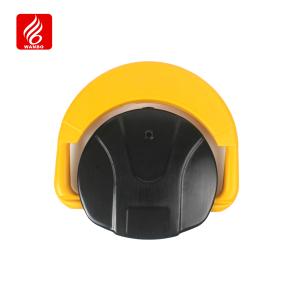

Product Introduction
Parking space lock is a parking space management equipment installed on the ground, mainly used to prevent others from occupying the parking space. It is widely used in new energy parking space control, fixed parking space protection, reservation of parking space and other scenarios.
Product Features
1) Pressure resistance: the product can withstand 3 tons of car rolling without damage in the falling state;
2) Anti-collision: the product can withstand the impact of conventional vehicles on both sides in the rising state;
3) Waterproof: the internal control part of the parking lock (motor box) and the battery, waterproof and dust-proof level is IP 67, can completely prevent dust from entering, can withstand short time immersion under normal temperature and pressure;
4) Remote control: the product is controlled by the owner's remote control, the stability control range is 0-15m;
5) Anti-theft: The product installation screw is located inside the outer cover, and can only be disassembled after the user uses the key to open the outer cover.
Ultrasonic recognition
Clients can choose an ultrasonic function to detect whether a vehicle is parked above the parking lock. When the vehicle leaves or does not stop for a long time, the parking lock can automatically raise the rocker arm to prevent other vehicles from entering (raise time and whether to raise can be configured).
Figure 4.1 Ultrasonic recognition logic
Fuzzy zone: The ultrasonic blind area, in this area, the identification data will be biased, and there is still a car in this area;
Car zone: The area where the distance can be judged stably and accurately, and there is a car;
Judgment zone (configurable): The parking lock has a 40mm judgment area, the upper boundary can be set (default 500mm), and objects in this range will not change the status of the parking space. For example, if the value is set to 500mm, the parking space status is a car, as long as there is an object in the range of 500, there will always be a car, the state is no car, and no object in the range of 460 is considered to be no car;
Identifiable car-free zone: refers to the maximum range that ultrasonic can be recognized, and is judged to be car-free area :(greater than 4500, ultrasonic sampling value is 0, so the object close to ultrasonic is also considered to be car-free)
Onsite Installation
Figure 5.1 Construction drawing
|
|
